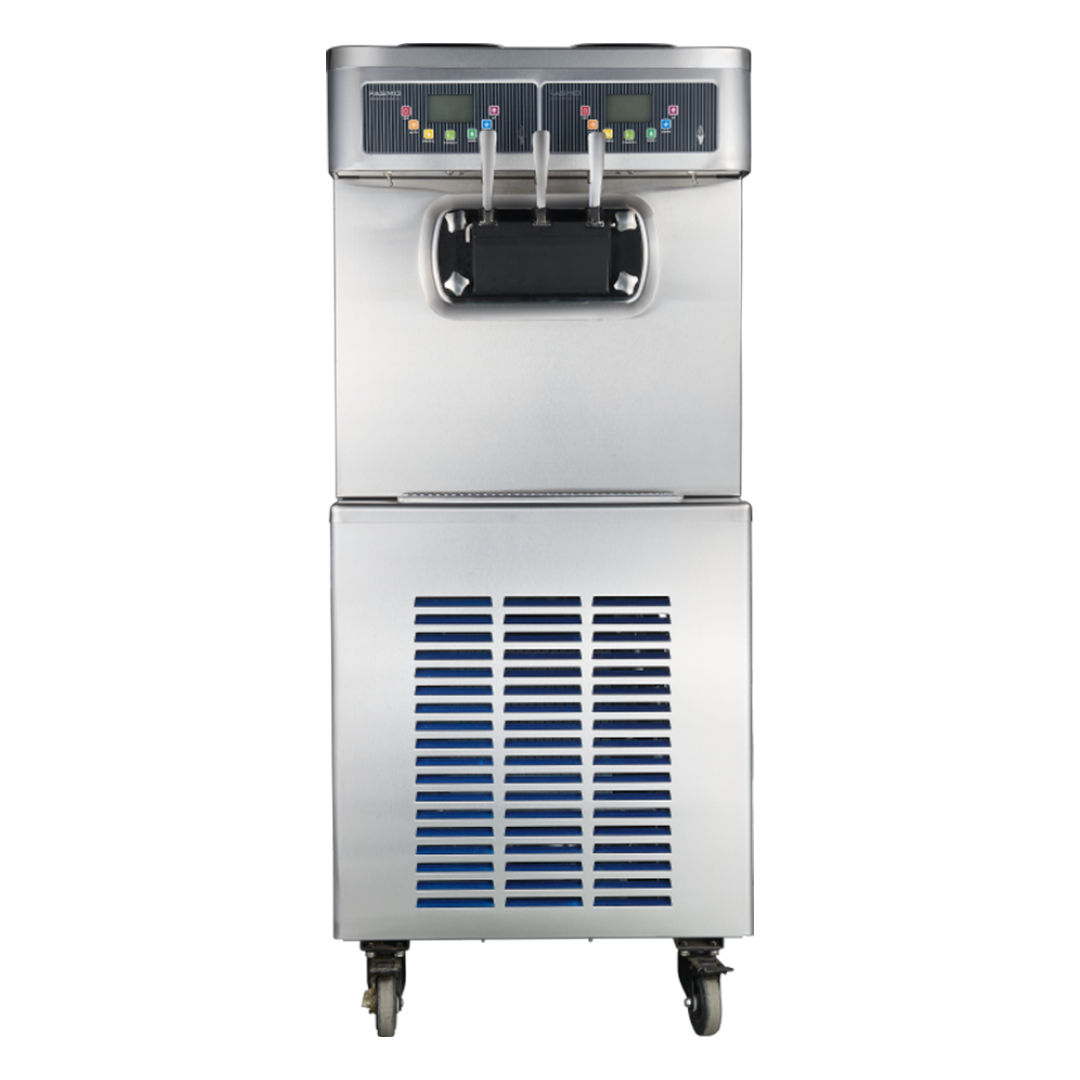

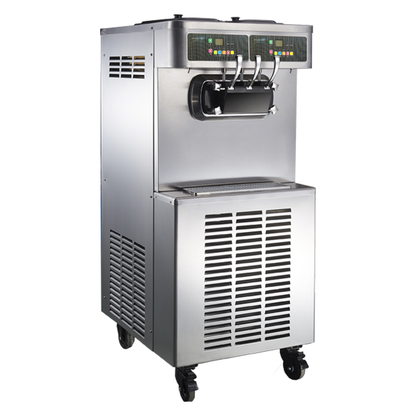

Pasmo 520 Pressurized Twin Twist Ice Cream Floor Standing Machine

Air-Cooled

220V

Introduction: 2 Liter freezing cylinder, optimizing on capacity, extraordinary continuous discharge ability, pre-cooling for hopper and cylinder at the same time, Counter and standby functions, as well as Stainless Steel construction,  make this unit well worth the low cost and high value. (Options include Air Cooling, Water Cooling, Air Pump, and Water Faucet)

GENERAL INFORMATION

• S520F Series
• stand model Type
• 50L/H Production capacity
• 3 No. of flavors
• 2 No. of hoppers
• 12.5L*2 Hopper capacity
• 32.3*25*60.6 Inches Specification
• 35*30*65 Inches Carton size
• 495Lbs Net weight
• 584Lbs Gross weight
• 2.0L*2 Cylinder capacity
• stainless steel Beater type
• standard Hopper mixer
• 220V 50/60Hz Power (Single or Three Phase Avail)
• 3.2Kw Total output
• Yes Self-check
• Yes Mix low
• No Pasteurization
• Yes Frequency conversion

• 2 No. of compressors
• Aspera Compressor brand
• 3753BTU/h*2 Compressors capacity
• R404a Gas of compressors
• 500g Gas qty
• Air cool Refrigeration type

• 2 No. of motors
• 750W*2 Motors capacity

Spec sheet
